XA
XB FALCON
ZF ZG FAIRLANE |
| |
|
|
|
|

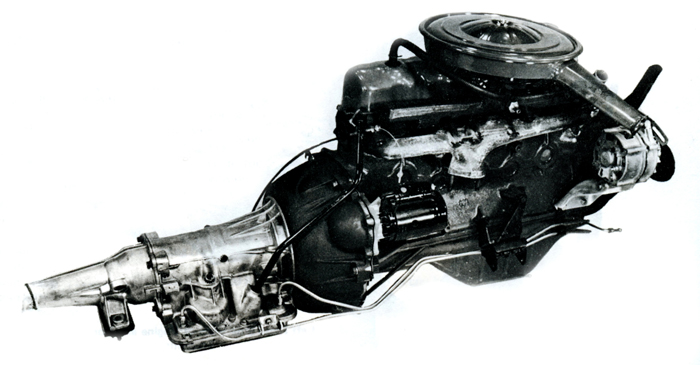

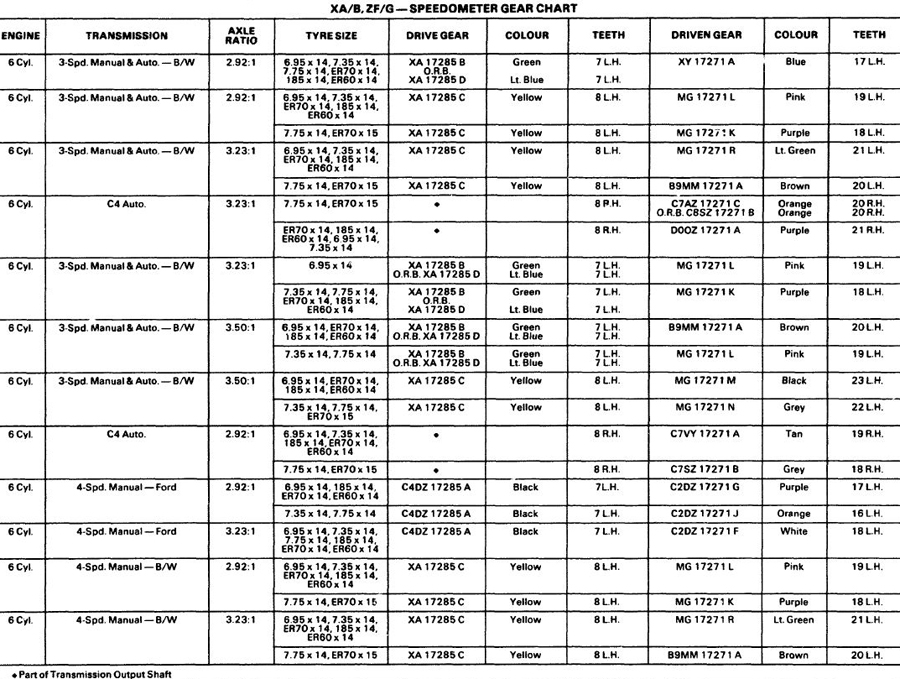

The Inline Six Ford Falcon engines were
a reliable and sturdy workhorse in their day with a solid reputation
for both simply cruising around right up to a good towing motor. The
Falcon Six came in two sizes - the 200ci and
250ci but were built on the same sized, and almost identical, block. The
250ci motor has a longer stroke which
creates a greater capacity and so a greater horsepower output.
The engine block, cylinder head and crankcase are cast iron with the
cylinders numbered 1 to 6 from the front.
There is a 12-value (Inlet / Exhaust) overhead cam arrangement with the
camshaft driven by chain and
sprockets from the crankshaft. The crankshaft and flywheel are supported
by seven main bearings.
The pistons have two compression rings and an oil ring with the
connecting rods of H section forged steel.
The electrical system is 12 volts with coil and alternator. The engine
oil capacity is 8 pints (4.5L) with a
radiator (coolant) capacity of 15 pints (8.5L). |
| |
|
|
|
|
 |
| |
|
|
|
|
| 200ci Inline Six |
| |
|
|
|
|
| |
CARBURETION |
|
|
|
| |
|
1V - Single Barrel |
|
| |
SPECIFICATIONS |
|
|
|
| |
Configuration: |
Inline Six Cylinder |
|
| |
Firing Order: |
1 5 3 6 2 4 |
|
| |
Capacity: |
200 cubic inches |
3.3 Litres (3277 cubic cm) |
|
| |
Bore & Stroke: |
3.68 x 3.13 inches |
93.47mm x 79.50mm |
|
| |
Low Compression Ratio: |
8.0:1 |
|
| |
High Compression Ratio: |
8.8:1 |
|
| |
Power Output (LC): |
114bhp @ 4,600rpm |
85kW @ 4,600rpm |
|
| |
Power Output (HC): |
130bhp @ 4,600rpm |
97kW @ 4,600rpm |
|
| |
Torque (LC): |
170ft/lb @ 2,000rpm |
230Nm @ 2,000rpm |
|
| |
Torque (HC): |
190ft/lb @ 2,000rpm |
258Nm @ 2,000rpm |
|
| |
Engine Oil Capacity: |
8.0pts |
4.5 Litres |
|
| |
|
|
|
|
| |
STANDARD FITTING: |
XA / XB Falcon Standard |
(HC) |
|
| |
|
XA / XB Falcon 500 |
(HC) |
|
| |
OPTIONAL FITTING: |
Not optional with any other XA, XB or
Fairlane series. |
|
| |
ENGINE CODES: |
E |
200ci 1V Low Compression |
|
| |
|
G |
200ci 1V High Compression |
|
| |
|
|
|
|
| 250ci
Inline Six |
| |
|
|
|
|
| |
CARBURETION |
|
|
|
| |
|
1V - Single Barrel |
|
| |
SPECIFICATIONS |
|
|
|
| |
Configuration: |
Inline Six Cylinder |
|
| |
Firing Order: |
1 5 3 6 2 4 |
|
| |
Capacity: |
250 cubic inches |
4.1 Litres (4097 cubic cm) |
|
| |
Bore & Stroke: |
3.68 x 3.91 inches |
93.47mm x 99.31mm |
|
| |
Low Compression Ratio: |
8.2:1 |
|
| |
High Compression Ratio: |
9.1:1 |
|
| |
Power Output (LC): |
138bhp @ 4,000rpm |
103kW @ 4,000rpm |
|
| |
Power Output (HC): |
155bhp @ 4,000rpm |
116kW @ 4,000rpm |
|
| |
Torque (LC): |
216ft/lb @ 1,700rpm |
293Nm @ 1,700rpm |
|
| |
Torque (HC): |
240ft/lb @ 1,600rpm |
325Nm @ 1,600rpm |
|
| |
Engine Oil Capacity: |
8.0pts |
4.5 Litres |
|
| |
|
|
|
|
| |
STANDARD FITTING: |
XA / XB Futura |
(HC) |
|
| |
|
XA / XB Fairmont |
(HC) |
|
| |
|
ZF / ZG Fairlane Custom |
(HC) |
|
| |
OPTIONAL FITTING: |
XA / XB Falcon Standard |
|
|
| |
|
XA / XB Falcon 500 |
|
|
| |
ENGINE CODES: |
J |
250ci 1V Low Compression |
|
| |
|
L |
250ci 1V High Compression |
|
| |
|
|
|
|
| 250ci
Inline Six (Special) |
| |
|
|
|
|
| |
CARBURETION |
|
|
|
| |
|
2V - Two Barrel |
|
| |
SPECIFICATIONS |
|
|
|
| |
Configuration: |
Inline Six Cylinder |
|
| |
Firing Order: |
1 5 3 6 2 4 |
|
| |
Capacity: |
250 cubic inches |
4.1 Litres (4097 cubic cm) |
|
| |
Bore & Stroke: |
3.68 x 3.91 inches |
93.47mm x 99.31mm |
|
| |
High Compression Ratio: |
9.1:1 |
|
| |
Power Output (HC): |
170bhp @ 4,600rpm |
127kW @ 4,600rpm |
|
| |
Torque (HC): |
250ft/lb @ 2,800rpm |
353Nm @ 2,800rpm |
|
| |
Engine Oil Capacity: |
8.0pts |
4.5 Litres |
|
| |
|
|
|
|
| |
OPTIONAL FITTING: |
Only optional with XA Falcon model. |
|
| |
|
Optional with all XA series except Fairlane and GT. |
|
| |
ENGINE CODE: |
M |
250ci 2V High Compression |
|
| xxxxx |
xxxxxxxxxxxxxxxxxxxxxxxx |
xxxxxxxxxxxxxxxxxxxxxxx |
xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx |
xxxxx |
| XC FALCON |
| |
|
|
|
|

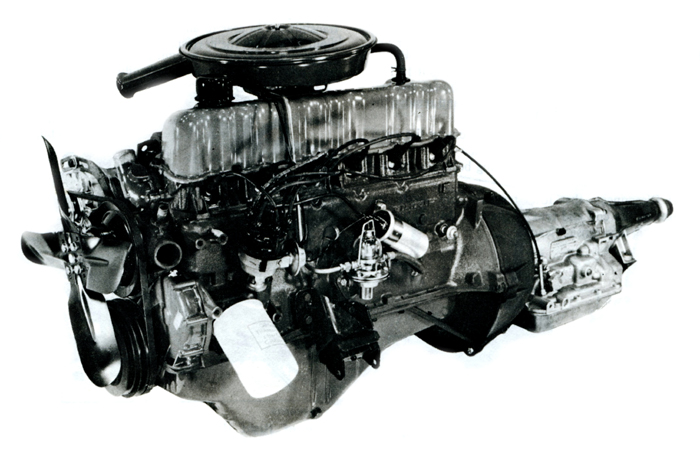

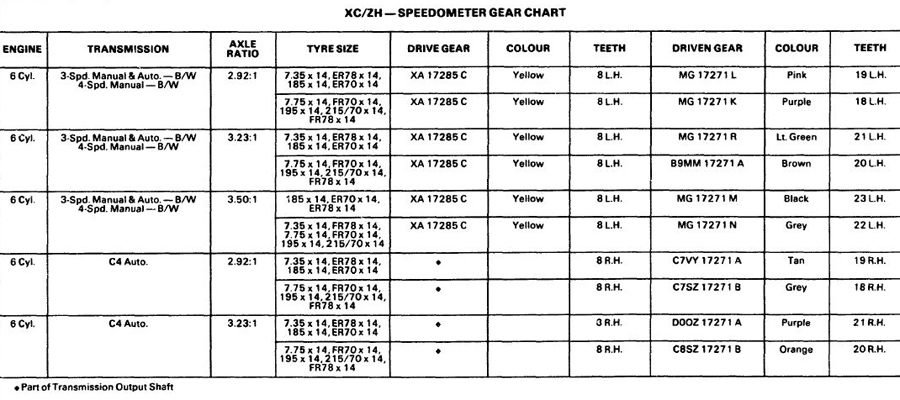

The Inline Six Ford Falcon engines in
the XC model range from 1976 remained overall, generally the same as
its XA-XB predecessors. The most obvious difference to the eye on
lifting the bonnet now is the re-shaped,
elongated air filter housing and the addition of several tubes and
fittings for emission control requirements.
In conjunction with this, the sixes also now had 'cross-flow cylinder
heads' for greater efficiency.
The
Falcon Six came in two sizes - the 3.3L and 4.1L but were built on the same sized, and almost identical,
block. The
4.1L motor has a longer stroke which
creates a greater capacity and so a greater horsepower output.
The engine block, cylinder head and crankcase are cast iron with the
cylinders numbered 1 to 6 from the front.
There is a 12-value (Inlet / Exhaust) overhead cam arrangement with the
camshaft driven by a morse chain
and
sprockets from the crankshaft. The crankshaft and flywheel are supported
by seven main bearings.
The pistons have two compression rings and an oil ring with the
connecting rods of H section forged steel.
The electrical system is 12 volts with coil and alternator. The engine
oil capacity is 4.5 litres with a
radiator (coolant) capacity of 8.5 litres.

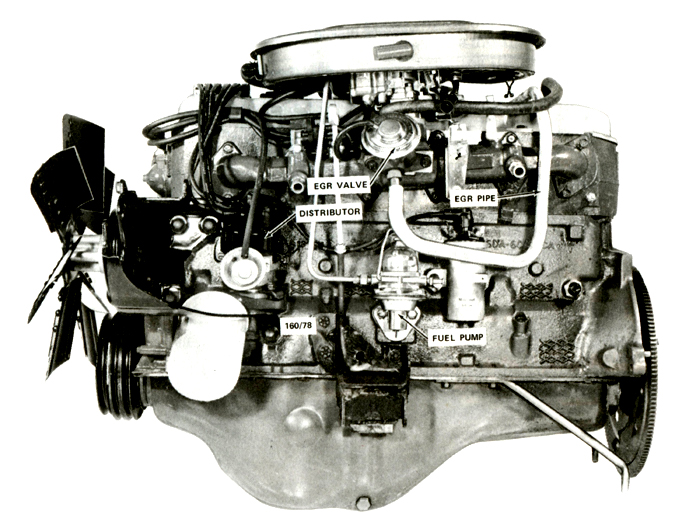

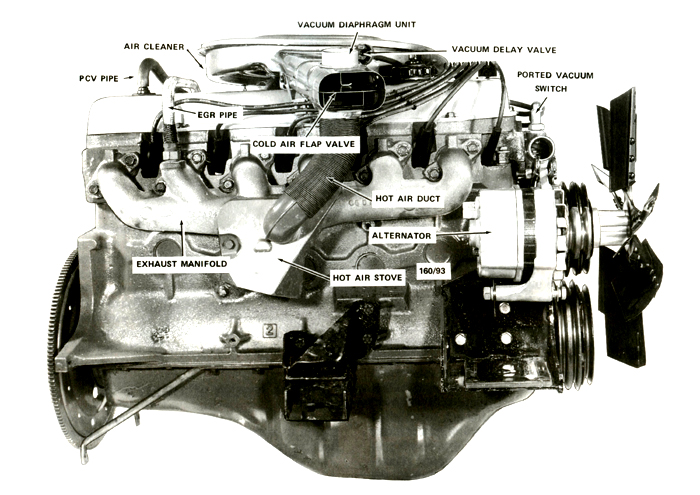

Emission control is accomplished with four new systems:
1) Positive Crankcase Ventilation (PCV) - a closed
system that uses fresh air drawn from the
air filter housing to force pollutant fumes from the crank housing into
the inlet manifold.
2) Controlled Combustion System (CCS) - an intake air
pre-heating system in the air filter housing.
3) Evaporative Control System (ECS) - reduces vapour
loss from the vehicle's fuel tank and
carburettor by trapping vapours which are then fed into in the induction
system.
4) Exhaust Gas Recirculation (EGR) - circulates up to
15% of exhaust gases back through the
cylinders reducing engine pollutants. |
| |
|
|
|
|
 |
| |
|
|
|
|
| 200ci Inline Six |
| |
|
|
|
|
| |
CARBURETION |
|
|
|
| |
|
1V - Single Barrel |
|
| |
SPECIFICATIONS |
|
|
|
| |
Configuration: |
Inline Six Cylinder |
|
| |
Firing Order: |
1 5 3 6 2 4 |
|
| |
Capacity: |
200 cubic inches |
3.3 Litres (3277 cubic cm) |
|
| |
Bore & Stroke: |
3.68 x 3.13 inches |
93.47mm x 79.50mm |
|
| |
Medium Compression Ratio: |
7.87:1 |
|
| |
Power Output (MC): |
107bhp @ 4,200rpm |
80kW @ 4,200rpm |
|
| |
Torque (MC): |
162ft/lb @ 2,000rpm |
220Nm @ 2,000rpm |
|
| |
Engine Oil Capacity: |
8.0pts |
4.5 Litres |
|
| |
|
|
|
|
| |
STANDARD FITTING: |
XC Falcon Standard |
|
|
| |
|
XC Falcon 500 |
|
|
| |
OPTIONAL FITTING: |
Not optional with any other XC series. |
|
| |
ENGINE CODE: |
E |
200ci 1V Medium Compression |
|
| |
|
|
|
|
| 250ci
Inline Six |
| |
|
|
|
|
| |
CARBURETION |
|
|
|
| |
|
1V - Single Barrel |
|
| |
SPECIFICATIONS |
|
|
|
| |
Configuration: |
Inline Six Cylinder |
|
| |
Firing Order: |
1 5 3 6 2 4 |
|
| |
Capacity: |
250 cubic inches |
4.1 Litres (4097 cubic cm) |
|
| |
Bore & Stroke: |
3.68 x 3.91 inches |
93.47mm x 99.31mm |
|
| |
Medium Compression Ratio: |
7.92:1 |
|
| |
High Compression Ratio: |
8.96:1 |
|
| |
Power Output (MC): |
113bhp @ 3,900rpm |
85kW @ 3,900rpm |
|
| |
Power Output (HC): |
123bhp @ 3,700rpm |
92kW @ 3,700rpm |
|
| |
Torque (MC): |
200ft/lb @ 1,900rpm |
272Nm @ 1,900rpm |
|
| |
Torque (HC): |
212ft/lb @ 2,400rpm |
288Nm @ 2,400rpm |
|
| |
Engine Oil Capacity: |
8.0pts |
4.5 Litres |
|
| |
|
|
|
|
| |
STANDARD FITTING: |
XC Falcon GS Hardtop |
(HC) |
|
| |
|
XC Sundowner Van |
(HC) |
|
| |
|
XC Fairmont |
(HC) |
|
| |
|
XC Fairmont GXL |
(HC) |
|
| |
OPTIONAL FITTING: |
XC Falcon Standard |
(HC) |
|
| |
|
XC Falcon 500 |
(HC) |
|
| |
ENGINE CODES: |
J |
250ci 1V Medium Compression |
|
| |
|
N |
250ci 1V High Compression |
|
| |
|
F |
250ci 1V High Compression (from 1979). |
|
